Charge Discharge Battery Testing Equipment Explosion Proof Safety Stainless Steel Chamber

  • 1
  • 2
  • 3

Brand Name : Sinuo

Model Number : SN552A

Certification : Calibration Certificate (Cost Additional)

Place of Origin : China

MOQ : 1

Price : Customized

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 20 Sets Per Month

Delivery Time : 1 Month

Packaging Details : Plywood

Chamber Quantities : Can be customized

Chamber Size : Can be customized

Inner Chamber Material : 1.5mm stainless steel

External Chamber Material : Cold rolled steel

Contact Now

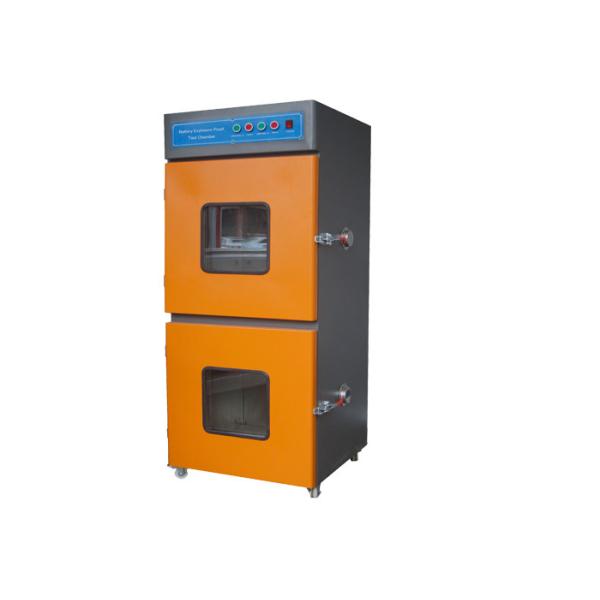

Lithium Nickel-Cadmium Battery and Cell Charged Discharged Explosion Proof Stainless Steel Test Chamber

Overview:

This explosion proof testing chamber is used to prevent unnecessary explosion or burning damage to the test personnel during the battery overcharge and over discharge testing. The inner chamber is made of stainless steel with good texture and anti-explosion effect, the test chamber can be customized by customer’s requirements.

Standards Compliant:

It is conforming to standard of IEC62133-1/-2:2017 clause 7.1, 7.2.1, 7.3.8, 7.3.9, IEC62133-1/-2:2012 clause 8.2.1, 8.3.6, 8.3.7, IEC 60086-1, IEC60622, IEC60623, IEC61951, IEC61960, and so on.

Technical Parameters:

Chamber Quantities 2 or 4 or 8 optional (can be customized)
Inner Chamber Size W500 X H500 X D500mm (can be customized)
Inner chamber Material 1.5mm stainless steel
External Chamber Material Cold rolled steel with spray treatment
Explosion-proof Glass Double 200X200 explosion proof glass, visible
Chamber door Connected to the chamber by powerful hinge, with explosion proof lock
Bottom One piece of marble slab to protect from battery external short circuit
Top Equipped with a high brightness energy-saving lamps to illuminate the entire test space
Venting fan A strong exhaust fan is installed in the back of the chamber
Pressure relief door built in the back of each chamber. In the event of a battery explosion, the door will open and release pressure.
Testing port Diamter:50mm cable port with stainless steel cover
Control Panel Control the venting fan and lighting
Inside 2 power line with two insulated handle thread clamps inside the chamber, which is used to clamp the positive and negative pole of the battery
Wheels Installed with universal wheel at the bottom of the chamber
Power source AC 220V, 50Hz or AC110V, 60HZ ( can be customized)

Main Components:

Name Specification Origin
Protection box stainless steel inside, cold rolling SS outside Sinuo
Tempering glass 220X220X10 China
Venting fan 150X150 China
Button Made in China China
Power switch Made in China China
Features:
