IEC 60598-1 Clause 4.14.1 Test E Spring Clamp Luminaires Test Device For Luminaires Test

Name: IEC 605981 Clause 4141 Test E Spring Clamp Luminaires Test Device For Luminaires Test
Brand: Sinuo
Price: 1 USD

Buy cheap IEC 60598-1 Clause 4.14.1 Test E Spring Clamp Luminaires Test Device For Luminaires Test product

Brand Name : Sinuo

Model Number : SN9927

Certification : Calibration Certificate (Cost Additional)

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : T/T

Supply Ability : 20 Sets Per Month

Delivery Time : 25 Days

Packaging Details : Plywood Case

Test station : Single station

Operation mode : Manually

Force range : 0-100N

Force resolution : 0.01N

Glass thickness : 10mm

Test metal rod : Ø20mm

Contact Now

IEC 60598-1 Clause 4.14.1 Test E Spring Clamp Luminaires Test Device For Luminaires Test

Product information:

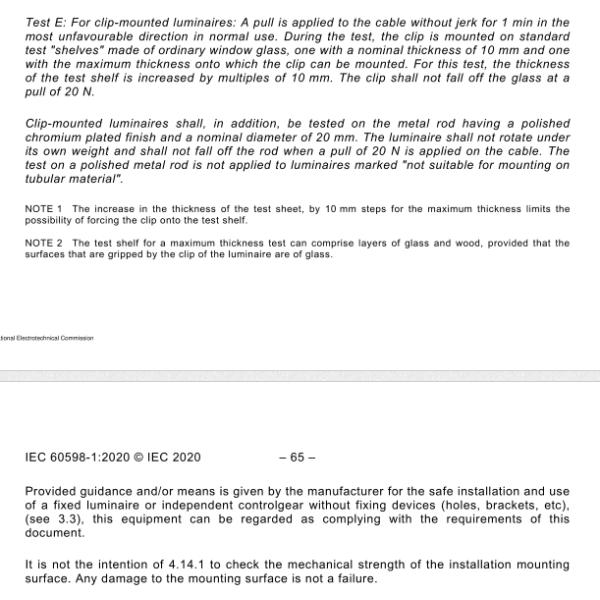

Standard: IEC60598-1:2020 "Luminaries-Part1: General requirements and tests" clause 4.14.1 test E

IEC 60598-1 Clause 4.14.1 Test E Spring Clamp Luminaires Test Device For Luminaires Test

Specimen and limitations: Spring clamp mounted luminaires

Test purpose: Used to test the clamping strength of spring clamp-mounted luminaires to verify the safety of the clamping connection

Test principle:

In this test, a push-pull force meter installed on the rack is used to apply tension to the cable in the most unfavorable direction during normal use of the spring-clamped lamp, which lasts for 1 minute.

Technical parameters:

Test station	Single station
Operation mode	Manually adjust the rocker of the push-pull force meter until the force value is constant for 1 minute, and then release it.
Push-pull force meter range	0-100N, resolution 0.01N
Installation glass thickness	Standard test shelf: A piece of ordinary glass plate with a thickness of 10mm. Another glass plate with a thickness that the spring clip can be installed on it, and the thickness increases in multiples of 10mm.
Test metal rod	1 piece, Ø20mm, polished chrome plated surface
Test method	Under a pulling force of 20N, the spring clip should not move on the glass. Under a pulling force of 20N, the spring clamped luminaire should not fall off the metal rod.

IEC 60598-1 Clause 4.14.1 Test E Spring Clamp Luminaires Test Device For Luminaires Test
