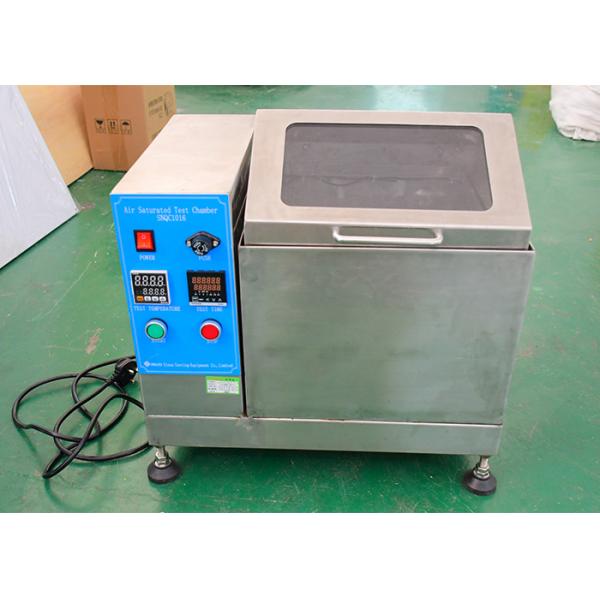

IEC 62196-1 Air Saturated Test Chamber Rust Corrosion Steam Testing Equipment For Plug Testing
Product Information:
The Air Saturated Test Chamber is designed according to IEC 62196-1:2022 clause 30.
It is used to accelerate rusting and corrosion in metal components such as plugs, screws, and EV charging connectors after ammonium chloride immersion.
By simulating saturated water vapor environments, it provides highly reliable test results for product durability and compliance verification.
Key Features:
Accurate Temperature Control – Microcomputer controller with LED digital display
High-Precision Sensor – Platinum PT-100 sensor, resolution 0.1℃
Programmable Steam Testing – Adjustable vapor temperature & test duration
Durable Stainless Steel Structure – SUS#316 inner chamber with full argon welding
Automatic Operation – Intelligent control system with LCD humidity & temperature display
Reliable Timing System – 0.1～999.9s/m/h, buzzer alarm when completed
Technical Parameters:
| Parameter | Specification |
| Standard Compliance | IEC 62196-1:2022 Clause 30 |
| Input Power | AC220V ±10%, 50/60Hz |
| Test Space | W250 × D200 × H200 mm |
| Water Vapor Temperature | (20 ± 5)℃ |
| Humidity Indication | LCD digital display |
| Timer Range | 0.1～999.9s/m/h, with buzzer alarm |
| Response Time | ≤1 min (up to 99% humidity) |

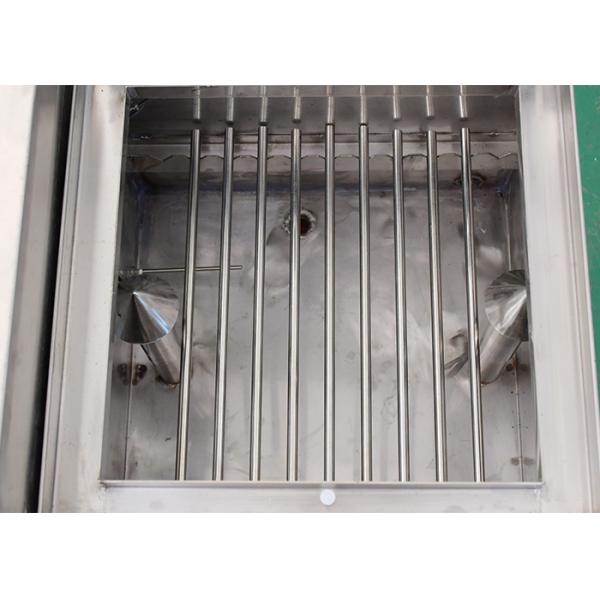

| Inner Chamber Material | SUS#316 stainless steel, full argon welding |
| Outer Chamber Material | SUS#304 stainless steel |
Applications:
EV Charging Connectors – IEC 62196-1 compliance testing
Electrical Plugs & Sockets – Corrosion resistance validation
Screws, Bolts & Metal Parts – Rust resistance assessment
Automotive & Industrial Components – Environmental durability evaluation
